mattroh 07-27-2012 08:53:46 12.43.160.92 Report to Moderator	I am wondering, on the main John Deere decal on the hood, where does it go? I've seen some centered on the hood, and some closer to the front of the hood... this is my first tractor that I've restored, and I have no idea. This is on a 1954 JD 70 Gas, Row-Crop Tractor. Thanks in advance, Matt [Reply]   [No Email]
Dodgeit 08-17-2012 11:14:51 65.199.61.227 Report to Moderator	Re: Decal Placement in reply to OhioTractorGuy, 07-27-2012 08:53:46   Quoting Removed, click Modern View to see The 1950 does not have a pressurized coolant system, so that decal is not needed. Even with a water pump. The be careful PTO decal I have seen, at different places on the tractor. There is a PTO warning that is a plate mounted on the battery box, on the backside. There is also a call out for the sticker to go on the PTO shield, and I have also seen one low on the pedestal holding the steering wheel, throttle and head lights. The every 10 hr decal goes on the oil cup, that is mounted on the oil bath air cleaner via a thumb screw clamp. On the cup will be embossed a oil level line. The decal goes under that centered on the cup in both directions. Sorry I couldn't be of more help.   [Reply]  [No Email]
JDG 07-27-2012 21:11:46 71.62.30.30 Report to Moderator	Re: Decal Placement in reply to mattroh, 07-27-2012 08:53:46   F-I-T I got a set of decals from K & K for a "G" that had the patent decals   [Reply]  [No Email]
F-I-T 07-28-2012 06:02:18 184.6.240.123 Report to Moderator	Re: Decal Placement in reply to JDG, 07-27-2012 21:11:46   Quoting Removed, click Modern View to see They didn't supply those with the last set I bought. Can you post a photo of it?   [Reply]  [No Email]
F-I-T 07-27-2012 16:27:55 184.6.240.123 Report to Moderator	Re: Decal Placement in reply to mattroh, 07-27-2012 08:53:46   Can you still see the original patent decals on the frame? Absence of patent decals is a dead giveaway of a repaint since they were never supplied in any decal set.   [Reply]  [No Email]
James Howell 07-27-2012 20:46:00 75.227.147.171 Report to Moderator	Re: Decal Placement in reply to F-I-T, 07-27-2012 16:27:55   Where on the frame would they appear and I'll take a look?   [Reply]  [No Email]
F-I-T 07-28-2012 06:00:52 184.6.240.123 Report to Moderator	Re: Decal Placement in reply to James Howell, 07-27-2012 20:46:00   Quoting Removed, click Modern View to see Actually I think I can see one in the last photo...left side frame rail below the spark plug area.   [Reply]  [No Email]

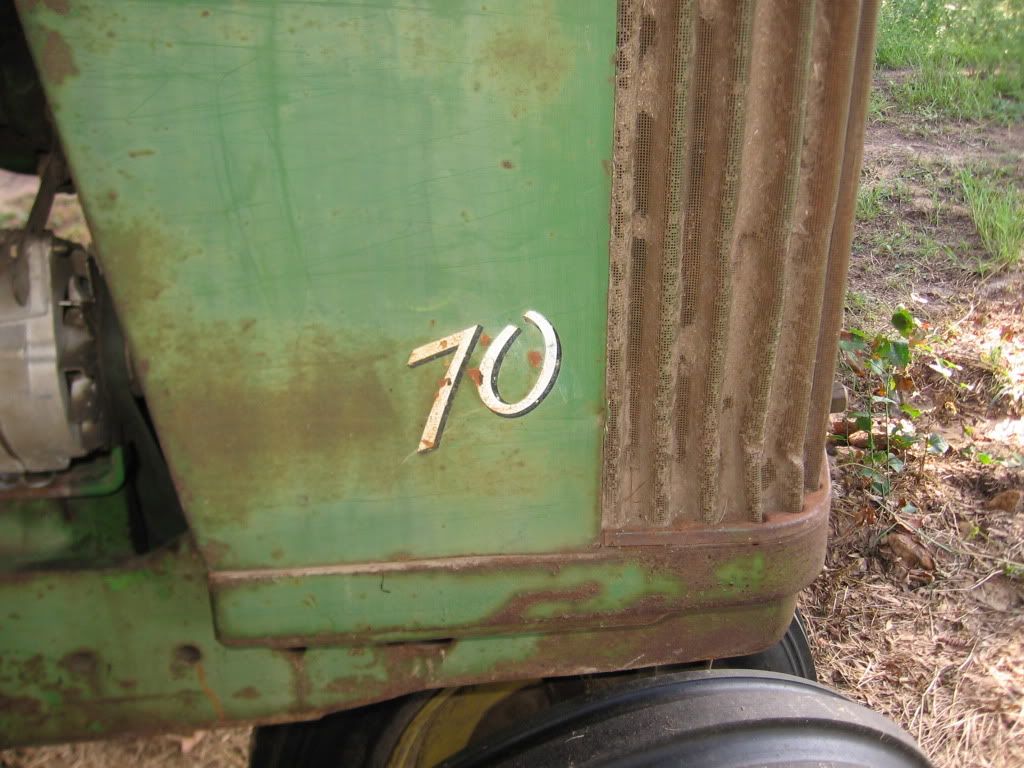

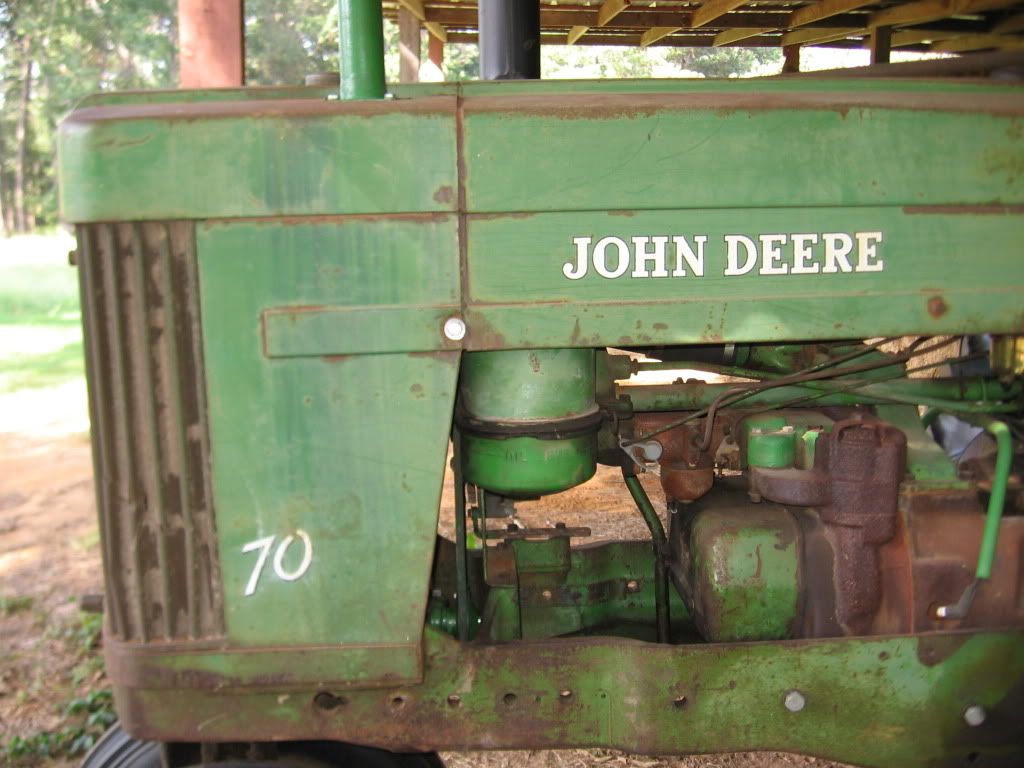

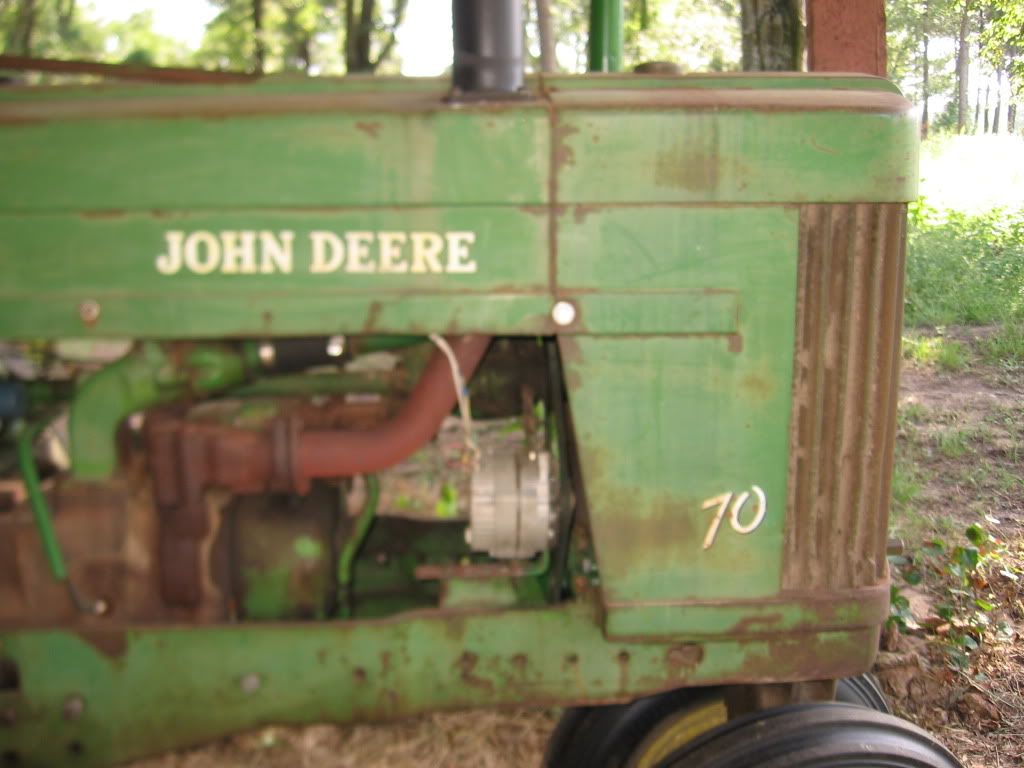

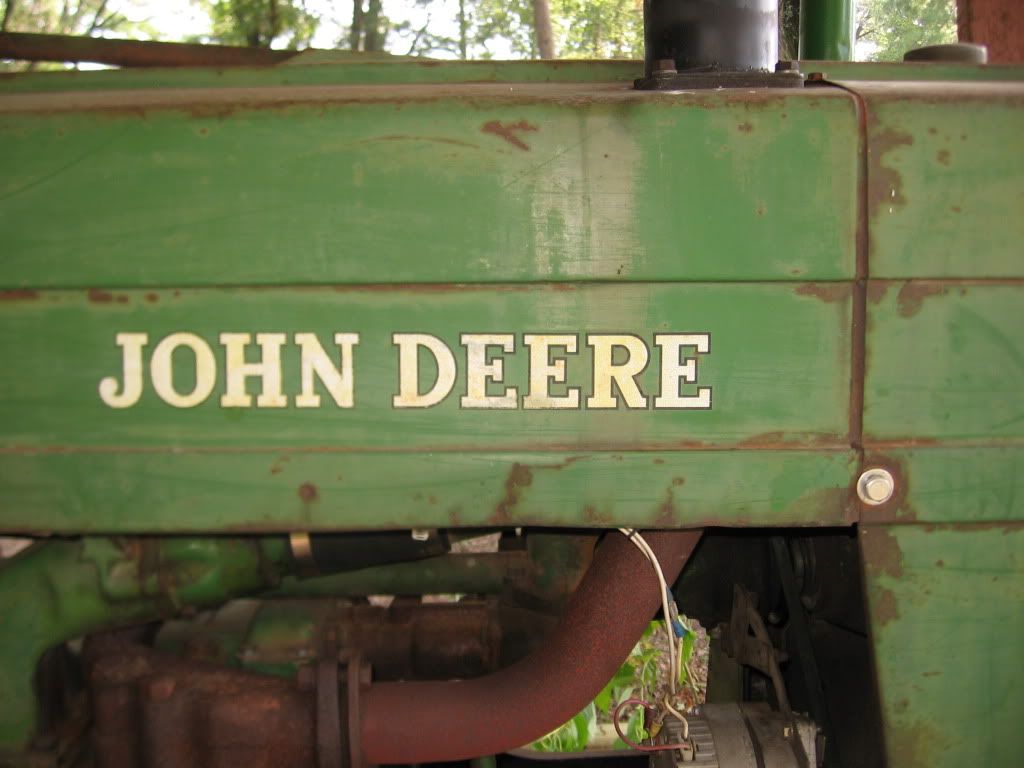

James Howell 07-27-2012 16:15:55 75.227.147.171 Report to Moderator	Re: Decal Placement in reply to mattroh, 07-27-2012 08:53:46   Take a look at the decals on "15" one of our early 1953 Model 70s. I have seen no evidence/indication that this tractor has ever been repainted or that the decals have ever been replaced. Each individual letter in the decal is separate and apart from the other letters. On the pulley side the decal is 4 inches from the seem of the hood and nose. One the flywheel side the decal is 41/2 inches from the seem of the hood and nose. Here are a couple of photos of the number 70. Each number in the decal is separate and apart from the other number. The number 70 on the pulley side is 3 inches from the bottom of the number 7 to the bottom of the nose and 1 inch from the right edge of the 0 to the grill screen. The number 70 on the flywheel side is 3 inches from the bottom of the number 7 to the bottom of the nose and 1 inch from the bottom of the number 7 to the grill screen. Hope this helps.   [Reply]  [No Email]
CLW 07-27-2012 14:48:19 108.206.122.51 Report to Moderator	Re: Decal Placement in reply to Tx Jim, 07-27-2012 08:53:46     [Reply]  [No Email]
Mike Aylward 07-27-2012 13:45:31 216.145.134.145 Report to Moderator	Re: Decal Placement in reply to mattroh, 07-27-2012 08:53:46   Matt, I imagine the placement varied somewhat on original tractors but of those originals that I have the lettering starts about 4 inches behind the seam between the grille and the hood on all of them. That measurement looks about right from pictures and other tractors I've seen. Mike   [Reply]  [No Email]
mattroh 07-27-2012 09:10:11 12.43.160.92 Report to Moderator	Re: Decal Placement in reply to mattroh, 07-27-2012 08:53:46   Also, where does the "70" decal go on the tractor, and what degree turn is it at? Thanks again, Matt   [Reply]  [No Email]
F-I-T 07-27-2012 10:26:53 184.6.240.123 Report to Moderator	Re: Decal Placement in reply to mattroh, 07-27-2012 09:10:11   Someone with a gas '70' will pop in with the measurements on the hood. The diesel was skewed a bit to allow for the "Diesel" decal. The '70' tilts at 28 degrees. This post was edited by F-I-T at 15:05:07 07/27/12.   [Reply]  [No Email]
